| Cadre | CHASE Element Pro XL 21″ Top Tube, 7005 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |
| Fourche | ANSWER Dagger Carbon Pro, 10mm Axle drop outs, 1-1/8″ Alloy Steer Tube, Alloy Top Cap |
| Jeu de direction | CHASE Integrated Sealed Bearing |
| Guidon | CHASE Element 31.8mm Cr-mo, 8″ Rise, 28.5″ Width, 10° Back Sweep, 2° Up Sweep |
| Grips | INSIGHT C.O.G.S 145mm Lock-on |
| Potence | CHASE Element 31.8mm, 53mm, 6061 T6 Alloy CNC |
| Boîtier de pédalier | Press Fit 68/73mm Cartridge Bearings |
| Plateau | INSIGHT 44 Tooth 4 Bolts BCD 104mm |

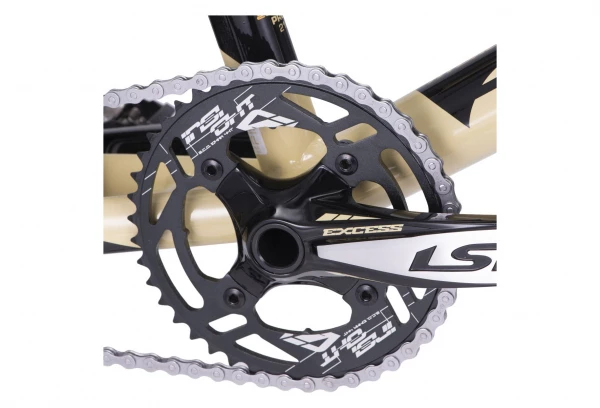

| Pédalier | EXCESS LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts |
| Pédales | Nylon Platform 9/16″ axle |
| Chaîne | KMC Z1 narrow 1/2″x3/32″ |
| Pignon | 16 Tooth |
| Moyeu Avant | CHASE Element, 10mm Axle, 36H, Sealed Bearing |
| Moyeu Arrière | CHASE Element ISO Hub, 10mm Axle, 36H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
| Rayon | 14 G |
| Tête de rayon | Brass 14Gx5/8″ |
| Jantes | SUN RINGLÉ Envy Front 36H 20×1.75″, No Brake Surface, Schrader Valve |
| Pneus | TIOGA FastR X 20×1.75″ |
| Chambre à air | 20×1.50/1.75″ Schrader valve |
| Freins | Hydraulic, 120mm disc rotor, Shimano B01S compatible Resin Pads, Lock Disc Adaptor |
| Selle | ELEVN PC Pivotal |
| Tige de selle | CHASE Aero Pivotal 27.2x260mm Alloy |
| Collier de selle | CHASE Aero 27.2mm QR Alloy |
| Poids | 9.45 kg |
| Taille | Expert | Pro | Pro XL | Pro XXL | Pro XXXL | Pro Cruiser | Pro+ Cruiser |
| Taille des roues (pouces) | 20 | 20 | 20 | 20 | 20 | 24 | 24 |
| Tube supérieur (mm) | 508 | 520.7 | 533.4 | 546.1 | 558.8 | 546.1 | 558.8 |
| Douille de direction (mm) | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Longueur base (mm) | 342.9 | 362 | 363.3 | 368.3 | 368.3 | 387.3 | 387.3 |
| Angle de direction (°) | 73 | 74 | 74 | 74 | 74 | 73 | 73 |
| Angle tube de selle (°) | 70 | 72.5 | 72.5 | 72.5 | 72.5 | 69.5 | 69.5 |
| Hauteur du boitier de pédalier (mm) | 279.4 | 292.1 | 292.1 | 292.1 | 292.1 | 304.8 | 304.8 |
